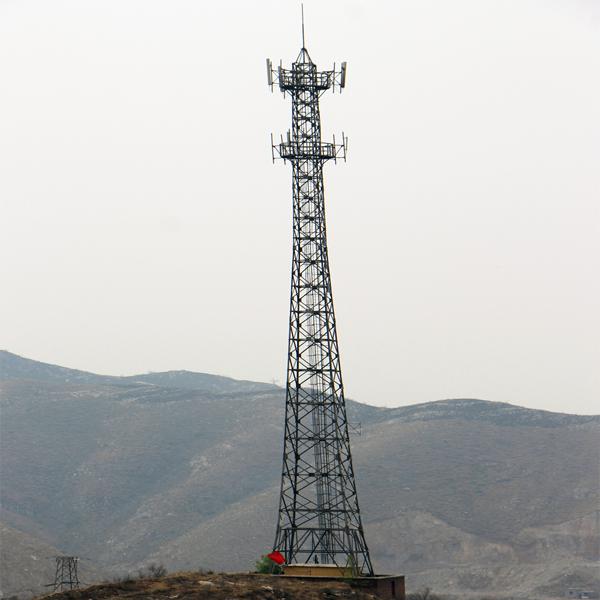

SST Mobile Communication Lattice Steel Towers 3 Platform Hot Dip Galvanized
3 Legged Galvanized steel Self-sopprting Lattice Mobile Communication Macrocell and Microcell Tower
The sections of tubular steel lattice tower completely made from steel pipes are generally welded in factory by 5m or longer lattice parts, each section is welded with flange plates for connection among tower sections. When you install the tower, you need to construct foundations with anchoring bolts frame (someone calls it steel cage frame) and concrete. The tower is fixed to foundations via flange plates with bolts and nuts. This kind of tubular steel lattice tower is easier for installation and very solid and strong, but the cost is a little higher and more costly for transportation because all the tower sections are welded in big parts which take more room in the truck or container.
So the most popular 3 legged steel lattice tower is made from tubular pipes and angular steel plates. The steel pipes are made for tower legs, angular steel plates are made for bracings (support members) and flate steel plates for connectors. The steel pipes are welded with flanges at each end for connection. All the parts of tower are prefabricated in CKD (completel knocked down) steel members ready for installation. When you install the tower, just fix the steel pipes to foundations by bolts and nuts and then connect the angular steel plate bracings to the pipes via welded connecting plates with bolts and nuts. In CKD way of fabrication, the cost is lower and shipping cost is also much lower because you can ship more materials in a container or truck.
| Material | Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars, bolts and nuts |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 3 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting flanges |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. Lattice Steel Towers |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations |
The structure of 3 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest or protection rod, ladder, earthing plates, anti-fall safety system (external cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.
Similar or Related Communications Towers
4 legged self-support steel lattice tower is generally made of angular steel plates and flat steel plates. The 4-leg lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steelt plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.
The structure of 4 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest/protection rod, ladder, earthing plates, anti-fall safety system (cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.
Specifications of 4 Legged Angular Steel Lattice Tower
